XL Sport LED KTM 2008-2013 w/Headlight Shell Baja Designs

XL Sport LED KTM 2008-2013 w/Headlight Shell Baja Designs

Regular price $352.95 USD
Regular price Sale price $352.95 USD
Sale Sold out

Ships directly from manufacturer. May have lead-times associated with item.

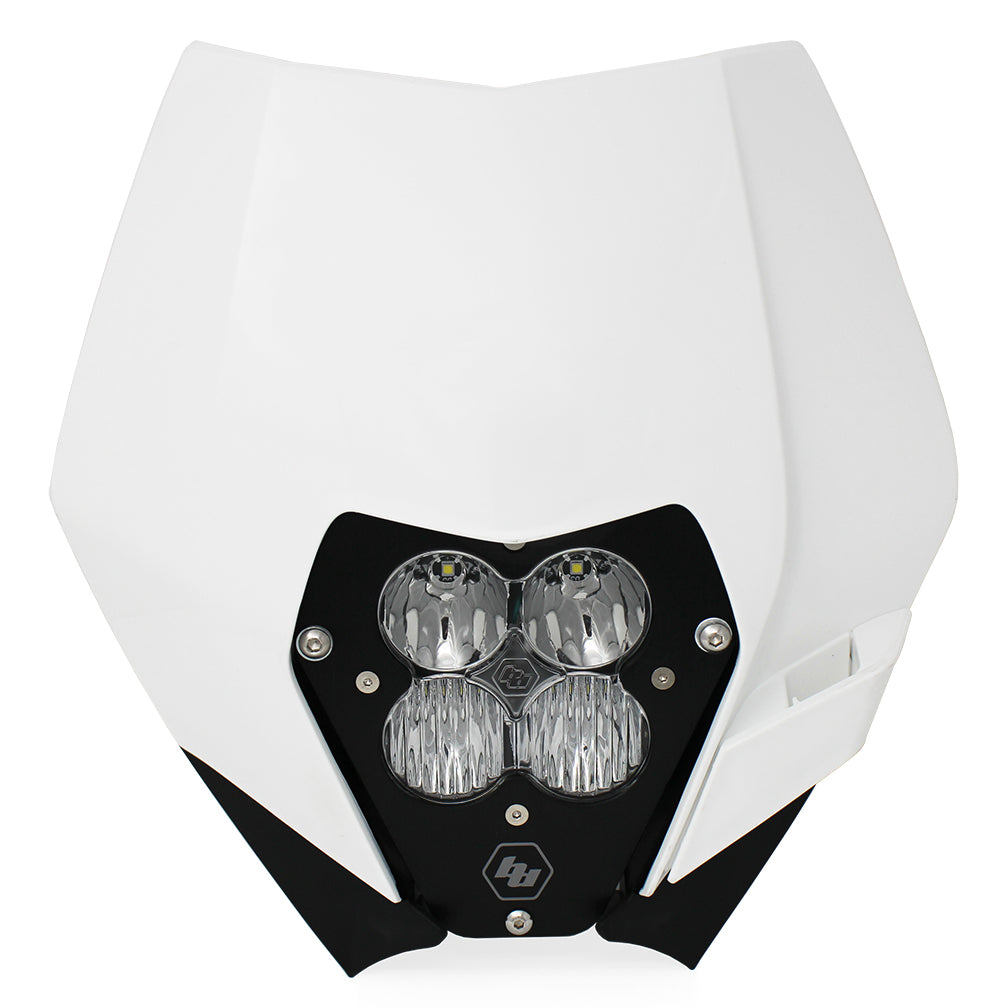

If you are looking for an off road light that features unique styling and leading edge performance, than the XL Sport, LED KTM 2008-2013 w/Headlight Shell is the light for you. The XL Sport produces an impressive 3,150 lumens while only drawing 26 watts, allowing for a longer ride.

An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Note: For the EXC's that were made from 2007-2011 that are carbureted, our lights are plug and play with the purchase of #61-1040 (DC conversion kit).

Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit.

For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike).

Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.

A Skene dimmer must be purchased separately to enable the high/low feature.

Baja Designs Features:

  • Satisfactions Guarantee - 30 Day Money Back Guarantee
  • Limited Lifetime Warranty - Complete Purchase Protection
  • uService - Replaceable Lenses And Optics
  • ClearView - All The Light, Right Where You Need It.
  • MoistureBlock - Waterproof, Rain Proof, Submersible
  • CopperDrive - Only LED Driven At 100 percent
  • 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 3,150 Utilizing 4 Cree XP-G2 LEDs
  • Wattage/Amps: 26W / 2A
  • Dimensions: 4.43 inch x 3.65 inch x 4.43 inch
  • Weight: 1.85 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

XL Sport, LED KTM 2008-2013 w/Headlight Shell
Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
