F-150 A Pillar Kit Squadron Pro Spot 21-On F-150 W/ Upfitter Baja Designs

F-150 A Pillar Kit Squadron Pro Spot 21-On F-150 W/ Upfitter Baja Designs

Regular price $552.95 USD
Regular price Sale price $552.95 USD
Sale Sold out

Ships directly from manufacturer. May have lead-times associated with item.

With the Ford, F150 (21-On) A Pillar Kit being an easy bolt on application, this makes it simple to put our Squadron Pros on your vehicle. Whether this kit is for camp lighting or cruising down a dark road, this kit will give all the output you need.

This kit includes powder coated A-Pillar brackets, stand-alone wiring harness, stainless-steel hardware as well as Squadron Driving Combo and Squadron Wide Cornering lenses to give you the option to fully customize the pattern of your A-Pillar lights.

Baja Designs Features:

  • Satisfactions Guaranteeand30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications (Per Light):

  • Lumens: 4,600 Utilizing 2 types of Cree LEDs
  • Wattage/Amps: 40W / 2.90A
  • Dimensions: 3.07 inch x 2.77 inch x 3.07 inch
  • Weight: 12 ounces
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized and Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

Application:

Ford F150 (21 - On)

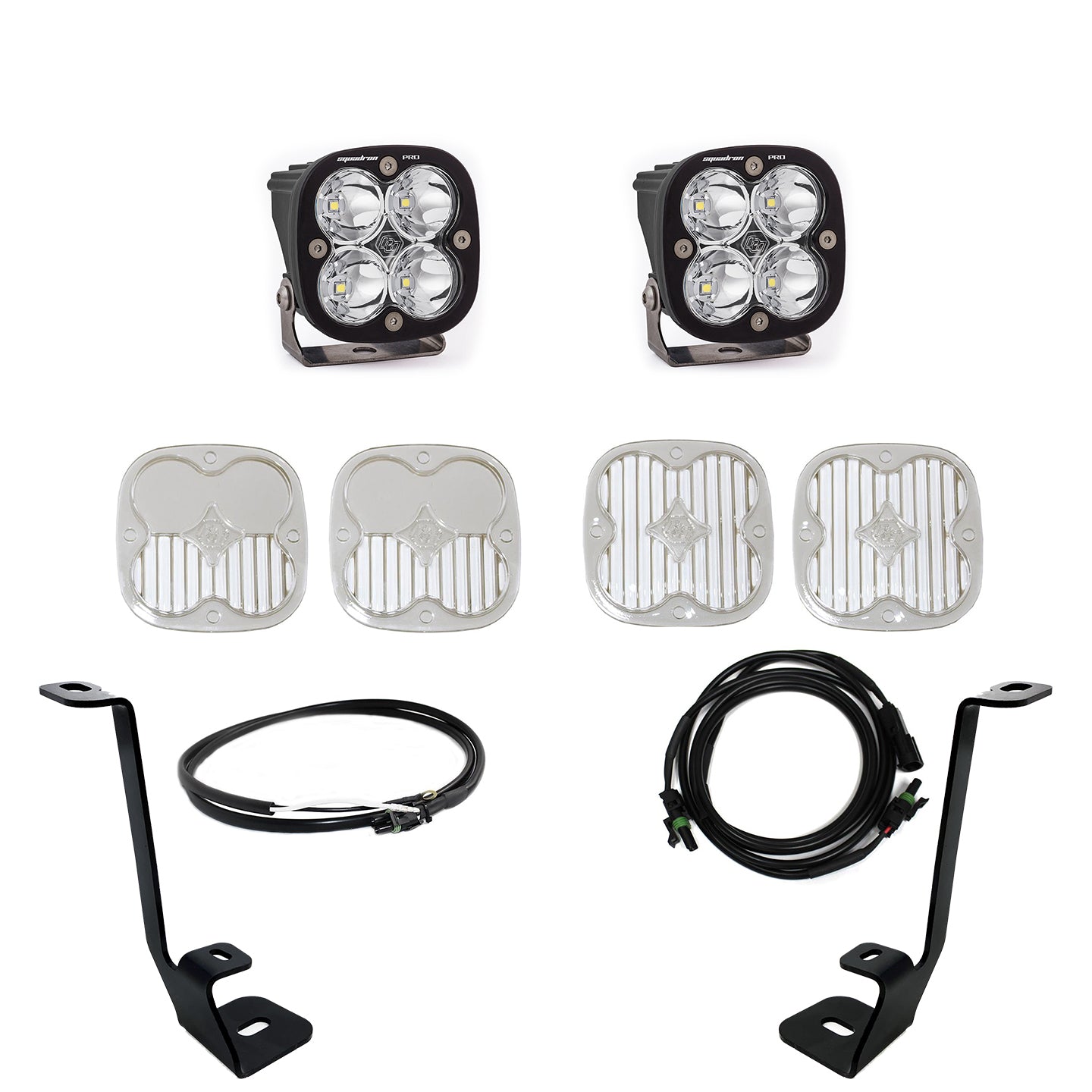

Included:

  • Squadron Pro, Spot Pair
  • x2 A-Pillar Brackets
  • x1 Upfitter Harness
  • x1 Parts Bag
  • x2 Driving Combo Lenses
  • x2 Wide Cornering Lenses

Patterns:

Spot: A longer and narrower 9 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (8 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
